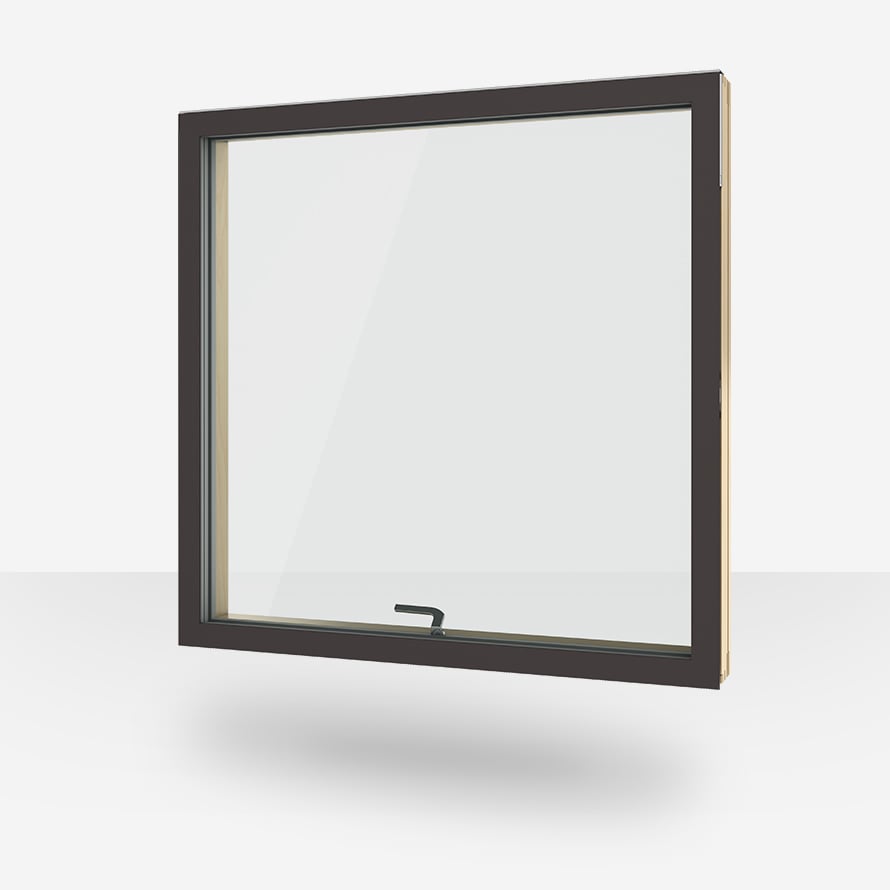

VELFAC 200

Name: VELFAC 200
Brand: VELFAC

Composite window with a factory-finished aluminium exterior over an engineered timber inner frame — the aluminium takes the weather and colour, the timber gives warmth and insulation inside. Slim sightlines and large glass areas; Plus achieves U-values around 1.5 W/m²K, triple-glazed ENERGY down to 0.8.

Manufacturer page

Carbon and evidence

Product Evidence

Evidence currently held for the VELFAC product record.

VELFAC

Recorded Carbon Result

72.9kgCO₂e/m²

A1–A3 GWP-total per m² of window, per EPD (top-guided VELFAC 200)

Indicator: GWP-total

VELFAC 200 Environmental Product Declaration · PDF p. 10, potential environmental impact table

A1–A3 covers raw-material supply, transport to manufacture and manufacturing. It is product-stage information, not a whole-life result.

Environmental Product Declaration

EPD recorded

Coverage: Representative product
Declared unit: 1 m² window
Programme: EPD International / EPD Danmark
Registration: S-P-07591 (EPD Danmark MD-23079)
Standard: EN 15804+A2
Valid until: 2028-02-10
Verification: Third-party verified

Declaration is for a VELFAC 200 ENERGY top-guided window per m²; confirm opening type and specification.

Read the EPDSource: PDF p. 10, potential environmental impact table

Carbon profile

kgCO2e per 1 m² window · each bar starts at zero · local scale

A1-A3 product

72.9

A4-A5 site*

not declared

—

B use

not declared

—

C end of life

D reuse / recycling

-23

adds carbon stores or removes EPD scenario* reuse/recycling potential (D)

* EPD transport and installation scenario, not this project's. Not declared: site, use. Module D shows potential impacts or benefits from reuse, recovery or recycling after the product's assessed life. It is reported separately and never added to A-C. Do not compare bar lengths between materials. Each chart may use a different scale and declared unit.

Reported GWP Modules

Displayed as stored; modules are not added together here.

A1–A3

72.9 kgCO₂e

per 1 m² window

0 kgCO₂e

per 1 m² window

0.602 kgCO₂e

per 1 m² window

19.3 kgCO₂e

per 1 m² window

1.08 kgCO₂e

per 1 m² window

-23 kgCO₂e

per 1 m² window

* A4/A5 are EPD scenarios, not project-specific results. Module D is outside the A–C system boundary and is not added to A–C. Module nomenclature follows BS EN 15978 / EN 15804. Declared values are suitable as inputs to a whole life carbon assessment under the RICS Professional Standard (2nd edition); this panel is not an assessment.

Service Life — the B4 Replacement Input

40 years · basis not recorded

≈2 installations over a 60-year building study period.

B4 (replacement) follows the building, not the product: an assessor multiplies replacement cycles by project quantities. This record supplies the service life and does not compute B4.

Sourced Product Claims

Timber/aluminium composite — low-maintenance exteriorManufacturer declaredSource
Third-party verified EPDThird-party verifiedSource
ENERGY triple-glazed optionManufacturer declaredSource

Evidence Sources

VELFAC 200 product page

VELFAC

Coverage: VELFAC 200

Manufacturer declared

VELFAC 200 Environmental Product Declaration

EPD International / EPD Danmark · PDF p. 10, potential environmental impact table

Coverage: Declaration is for a VELFAC 200 ENERGY top-guided window per m²; confirm opening type and specification.

Third-party verified

Comparison Status

The record contains the basic metadata required for a controlled comparison. Products must still perform the same function and use compatible units, PCRs and lifecycle scope.

Design & Specification Notes

Qualitative notes for early design discussion. Not product-specific EPD evidence, and not a basis for numerical comparison.

Composite window with a factory-finished aluminium exterior over an engineered timber inner frame — the aluminium takes the weather and colour, the timber gives warmth and insulation inside.

Typical Uses

•Glazing systems
•Daylight openings
•Thermal envelope

Key Performance

Supports daylight and thermal performance of the envelope.

Specification Actions

•Verify product-specific recycled content and manufacturing energy route.
•Use reversible fixings to support high-value metal recovery.
•Verify glazing U-values meet or exceed building regs.

Indicative Health & Indoor Air

low Risk

Factory-finished timber/aluminium; low-maintenance and durable.

Evidence:Third-party verified

Specification

Range: VELFAC 200
Collection: VELFAC 200
Finish: Composite timber/aluminium window
Thermal: U-value 1.5 W/m²K (Plus); down to 0.8 W/m²K (ENERGY triple-glazed)
Service life: 40 years
