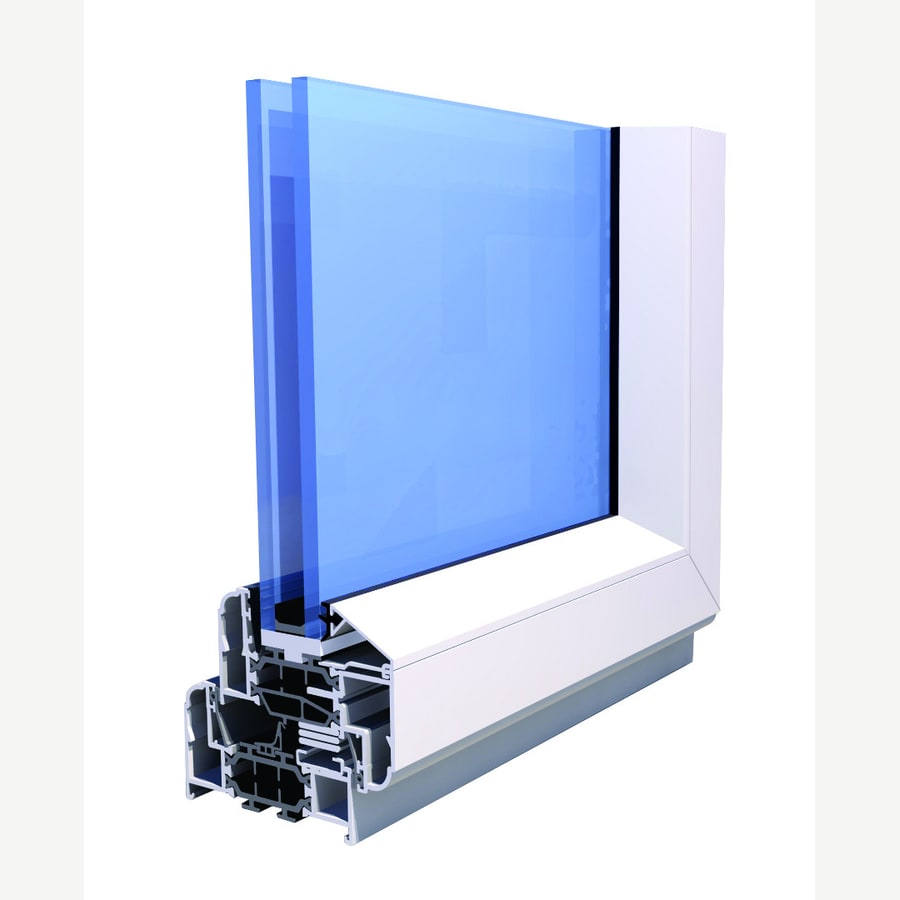

Smart Alitherm 800
The heavy-duty Alitherm for larger openings and commercial use: dual polyamide thermal breaks to 1.3 W/m²K with the correct glass unit, WER A capable. Note: the 800 is not among the five Alitherm systems holding Cradle to Cradle Bronze.
Carbon and evidence
Product Evidence
Evidence currently held for the Smart Systems product record.
Recorded Carbon Result
A1–A3 GWP-total per m² of the CAB industry-average side-hung aluminium window system (1.23 × 1.48 m, standard double glazed), per EPD-2023-0014 — a UK sector average Smart is an approved user of, NOT a Smart-specific figure. Enhanced/triple variants run to 121.
Indicator: GWP-total
A1–A3 covers raw-material supply, transport to manufacture and manufacturing. It is product-stage information, not a whole-life result.
Environmental Product Declaration
EPD recorded- Coverage
- Representative product
- Declared unit
- 1 m² of side-hung / top-hung aluminium window system (four representative 1.23 × 1.48 m windows)
- Programme
- European Aluminium AISBL (owner: Council for Aluminium in Building)
- Registration
- EPD-2023-0014
- Standard
- EN 15804+A2 (+ EN 17213, European Aluminium PCR 03/2020)
- Valid until
- 2028-09-20
- Verification
- Third-party verified
CAB association EPD representative of >50% of the UK market — not a Smart-specific declaration; Smart’s CAB approval letter is bundled into the PDF they host. Four representative windows: side hung standard 99.2 / top hung standard 105 / side hung enhanced (triple) 117 / top hung enhanced 121 kgCO2e per m². The EPD’s own disclaimer: it "cannot be used as a guarantee of the recycled content of the actual product sold on the market" — and Smart’s published billet sources are primary smelters, so no recycled-content claim is recorded here.
Reported GWP Modules
Displayed as stored; modules are not added together here.
A1–A3
99.2 kgCO₂e
per 1 m² of 1.23 × 1.48 m side-hung window system, standard double glazed
Service Life — the B4 Replacement Input
40 years · manufacturer declared
≈2 installations over a 60-year building study period.
1 certification is held in the staging record but not presented as product evidence because an exact public source has not yet been mapped.
Comparison Status
This result should be displayed for information only and not ranked against another product.
- • The PCR and version are missing.
- • The carbon result is not linked to an evidence source.
- • The EPD is not linked to an evidence source.
Evidence Gaps
- •No A4–D lifecycle results are held beyond the product stage.
- •No product-specific circularity or material-health claims are recorded.
- •1 certification is withheld because exact public evidence is not mapped.
Design & Specification Notes
Qualitative notes for early design discussion. Not product-specific EPD evidence, and not a basis for numerical comparison.
The heavy-duty Alitherm for larger openings and commercial use: dual polyamide thermal breaks to 1.
Typical Uses
- •Glazing systems
- •Daylight openings
- •Thermal envelope
Key Performance
Supports daylight and thermal performance of the envelope.
Specification Actions
- •Verify glazing U-values meet or exceed building regs.
- •Consider specifying higher recycled glass content.
- •Confirm the current EPD covers the selected product, finish and manufacturing route.
Indicative Health & Indoor Air
Specification
- Finish
- Thermally broken aluminium window, polyester powder coat
- Thermal
- Uw 1.3 W/m²K (with correct glass unit)
- Service life
- 40 years
